Iwata Professional Airbrush Maintenance Tools

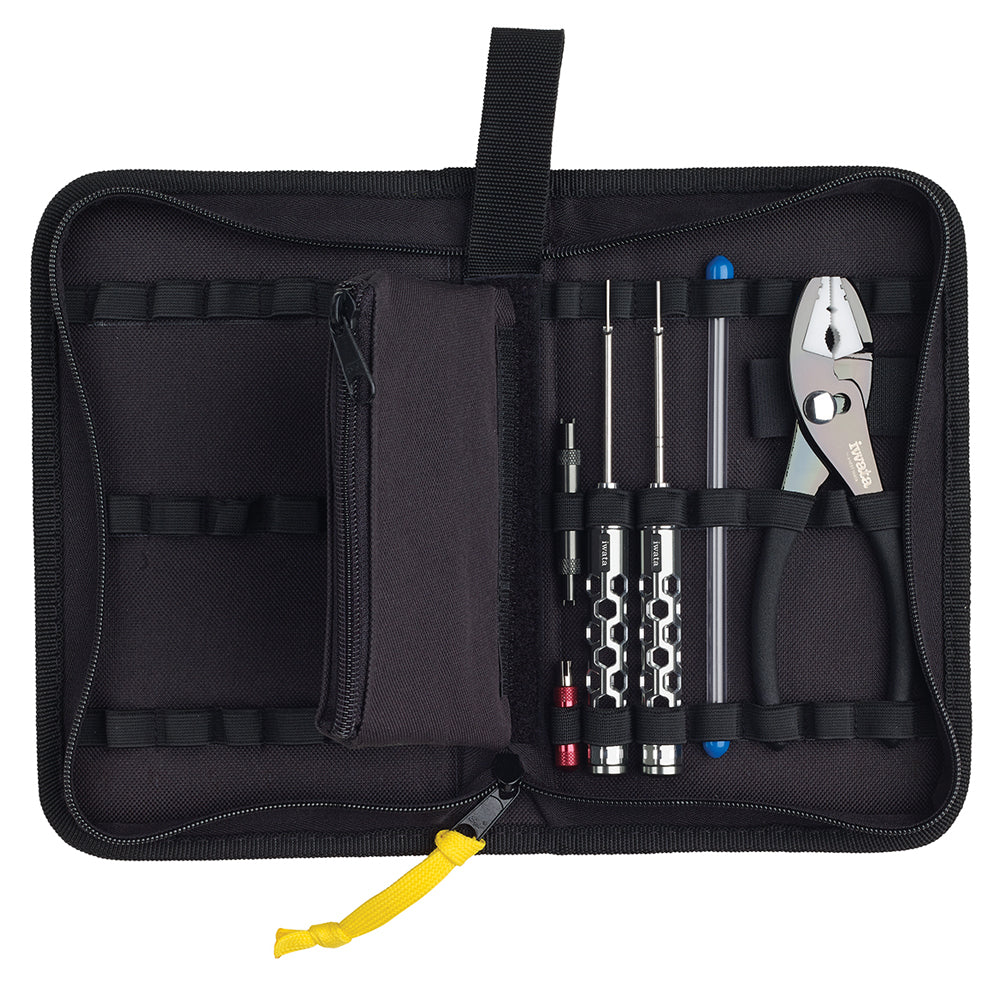

Iwata Professional Airbrush Maintenance Tools provide the ultimate airbrush maintenance experience to users. Included in the Iwata Professional Airbrush Maintenance Tools are; Iwata Soft Jaw Pliers, Iwata Air Valve Guide Wrench, Iwata Needle Packing Screw Drivers (1.2mm and 1.4mm) and the Iwata Nozzle Wrench Iwata Needle
Packing Screw Drivers (1.2 mm, 1.4 mm) Easily remove,
assemble and adjust the airbrush needle packing set (needle packing screw and
packing) with the Iwata Needle Packing Screw Drivers. The needle packing set
prevents paint from back-flowing into the main lever mechanism and is used to
adjust the sliding tension of the needle. To remove the
needle packing set, choose the appropriate screw driver (see list). The screw
driver pin size is the same diameter as the needle. With the airbrush
disassembled, insert the screw driver into the back of the airbrush body until
it connects with the needle packing screw as shown. Slowly turn the screw
driver to engage the slots in the needle packing screw and unscrew. The packing
set should be on the screw driver pin when removed or it may have fallen into
the airbrush body. To assemble,
place the needle packing set onto the pin of the screw driver, engaging the
slots. Slowly insert through the back of the airbrush body until the needle
packing screw is seated and gently tighten. To adjust the needle tension, slide
the pin slowly back and forth (to feel the tension) while tightening or
loosening the screw. 1.2 mm Iwata
Needle Packing Screw Driver for 1.2 mm diameter needles Custom Micron
Series — CM-B, CM-C, CM-SB, CM-C Plus Hi-Line Series —
HP-AH, HP-BH High Performance
Plus Series — HP-A Plus, HP-B Plus, HP-SB Plus High Performance
Series — HP-A, HP-B, HP-SB Revolution Series
— HP-AR, HP-BR, HP-TR2 Kustom Series —
Micron CM NEO for Iwata —
CN, BCN 1.4 mm Iwata
Needle Packing Screw Driver for 1.4 mm diameter needles Hi-Line Series —
HP-CH, HP-TH High Performance
Plus Series — HP-C Plus, HP-BC Plus, HP-BC1P High Performance
Series— HP-C, HP-BC, HP-BC2 Eclipse Series —
HP-BS, HP-CS, HP-BCS, HP-SBS Revolution Series
— HP-CR, HP-BCR, HP-SAR, HP-TR1 Kustom Series —
Eclipse CS, Hi-Line CH, Revolution TR, HP-TH NEO for Iwata —
TRN1, TRN2 Iwata Soft Jaw
Pliers Use these
specialized pliers to assemble or disassemble your airbrush. The nylon jaw
inserts grip firmly without damaging the
chrome surface. Replacement inserts are available. Iwata Air Valve
Guide Wrench Select the small
or large diameter end of the Iwata Air Valve Guide Wrench for your specific
airbrush model (see list). For air valve replacement, fit the wrench into the
two slots of the air valve guide and unscrew. Remove and replace the air valve
and reassemble. To customize the main lever spring tension, simply loosen or
tighten the air valve guide. Small diameter
for Custom Micron
Series — CM-B, CM-C, CM-SB, CM-C Plus Hi-Line Series —
HP-AH, HP-BH, HP-CH, HP-TH High Performance
Plus Series — HP-A Plus, HP-B Plus,  HP-C
Plus, HP-BC Plus, HP-SB Plus, HP-BC1P High Performance
Series — HP-A, HP-B, HP-C, HP-BC, HP-BC2, HP-SB Revolution Series
— HP-TR1, HP-TR2 Kustom Series —
Hi-Line CH, Micron CM, Revolution TR,
HP-TH Large diameter
for Eclipse Series —
HP-BS, HP-CS, HP-BCS, HP-SBS Kustom Series ­—
Eclipse CS Revolution Series
— HP-AR, HP-BR, HP-CR, HP-BCR, HP-SAR Does not fit NEO
for Iwata Series airbrushes. Iwata Nozzle
Wrench The
self-centering Iwata Nozzle Wrench is used to remove or tighten the nozzle onto
the airbrush body without the risk of over-tightening. Does not fit the Iwata
Eclipse Series airbrushes and the NEO for Iwata TRN2 side-feed trigger
airbrush.
